Page 91 - IJB-8-1
P. 91

Zhou, et al.
                          A                                 B













           C                                D                                E

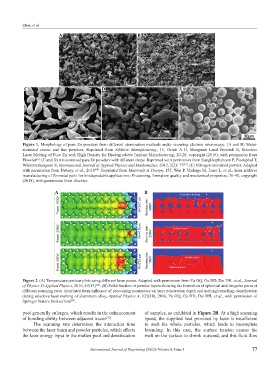

           Figure 1. Morphology of pure Zn powders from different atomization methods under scanning electron microscope. (A and B) Water-
           atomized  coarse  and  fine  powders.  Reprinted  from  Additive  Manufacturing, 15, Demir A G, Monguzzi  Land  Previtali  B, Selective
           Laser Melting of Pure Zn with High Density for Biodegradable Implant Manufacturing, 20-28, copyright (2016), with permission from
                 [6]
           Elsevier . (C and D) Air-atomized pure Zn powders with different shape. Reprinted with permission from Sungkhaphaitoon P, Plookphol T,
                                                                               [47]
           Wisutmethangoon S, International Journal of Applied Physics and Mathematics, 2012, 2(2): 77 . (E) Nitrogen-atomized powder. Adapted
           with permission from Debroy, et al., 2018 . Reprinted from Materials & Design, 155, Wen P, Voshage M, Jauer L, et al., laser additive
                                         [48]
           manufacturing of Zn metal parts for biodegradable applications: Processing, formation quality and mechanical properties, 36-45, copyright
           (2018), with permission from Elsevier.
                        A                                     B






















           Figure 2. (A) Temperature contour plots using different laser power. Adapted with permission from Yu GQ, Gu DD, Dai DH, et al., Journal
           of Physics D-Applied Physics, 2016, 49(13) . (B) Solid fraction of powder layers showing the formation of spherical and irregular pores at
                                          [56]
           different scanning rates. Reprinted from influence of processing parameters on laser penetration depth and melting/remelting densification
           during selective laser melting of aluminum alloy, Applied Physics A, 122(10), 2016, Yu GQ, Gu DD, Dai DH, et al., with permission of
           Springer Nature Switzerland .
                               [57]
           pool generally enlarges, which results in the enhancement   of samples, as exhibited in Figure 2B. At a high scanning
           of bonding ability between adjacent traces .        speed, the supplied heat provided by laser is insufficient
                                              [55]
               The scanning rate determines the interaction time   to melt the whole particles, which leads to incomplete
           between the laser beam and powder particles, which affects   bounding. In this case, the surface tension causes the
           the laser energy input in the molten pool and densification   melt on the surface to shrink outward, and this fluid flow


                                       International Journal of Bioprinting (2022)–Volume 8, Issue 1        77
   86   87   88   89   90   91   92   93   94   95   96
