Page 87 - IJB-4-1
P. 87

Mechanism for corrosion protection of β-TCP reinforced ZK60 via laser rapid solidification

                                     A                          B











                                     C                          D

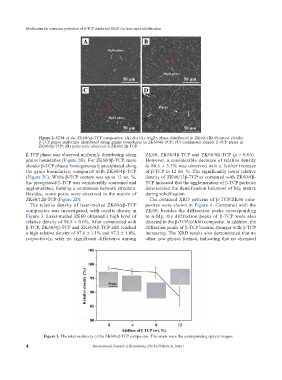

                  Figure 2. SEM of the ZK60/xβ-TCP composites: (A) dot like MgZn phase distributed in ZK60; (B) divorced slender
                  β-TCP phase uniformly distributed along grains boundaries in ZK60/4β-TCP; (C) continuous slender β-TCP phase in
                  ZK60/8β-TCP; (D) pores were observed in ZK60/12β-TCP.
            β-TCP phase was observed uniformly distributing along   ZK60, ZK60/4β-TCP and ZK60/8β-TCP (p > 0.05).
            grains boundaries (Figure 2B). For ZK60/8β-TCP, more   However, a considerable decrease of relative density
            slender β-TCP phases homogeneously precipitated along   to 88.5 ± 3.5% was observed with a further increase
            the grain boundaries, compared with ZK60/4β-TCP     of β-TCP to 12 wt. %. The significantly lower relative
            (Figure 2C). While β-TCP content was up to 12 wt. %,   density of ZK60/12β-TCP as compared with ZK60/8β-
            the precipitated β-TCP was considerably coarsened and   TCP indicated that the agglomeration of β-TCP particles
            agglomerated, forming a continuous network structure.   deteriorated the densification behavior of Mg matrix
            Besides, some pores were observed in the matrix of   during solidification.
            ZK60/12β-TCP (Figure 2D).                             The obtained XRD patterns of β-TCP/ZK60 com-
              The relative density of laser-melted ZK60/xβ-TCP   posites were shown in Figure 4. Compared with the
            composites was investigated, with results shown in   ZK60, besides the diffraction peaks corresponding
            Figure 3. Laser-melted ZK60 obtained a high level of   to α-Mg, the diffraction peaks of β-TCP were also
            relative density of 98.8 ± 0.6%. After composited with   detected in the β-TCP/xZK60 composite. In addition, the
            β-TCP, ZK60/4β-TCP and ZK60/8β-TCP still reached    diffraction peaks of β-TCP became stronger with β-TCP
            a high relative density of 97.6 ± 1.1% and 97.2 ± 1.8%,   increasing. The XRD results also demonstrated that no
            respectively, with no significant difference among   other new phases formed, indicating that no chemical
























                    Figure 3. The relative density of the ZK60/xβ-TCP composites. The insets were the corresponding optical images.

            4                            International Journal of Bioprinting (2018)–Volume 4, Issue 1
   82   83   84   85   86   87   88   89   90   91   92
