Materials Science in Additive Manufacturing                  Energy absorption of Moore’s thin-walled structures




                         A                                   B











                         C                                   D

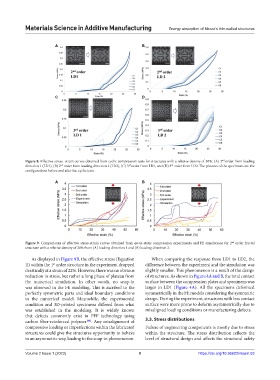

            Figure 8. Effective stress- strain curves obtained from cyclic compression tests for structures with a relative density of 20%: (A) 2  order from loading
                                                                                               nd
            direction 1 (LD1), (B) 2  order from loading direction 2 (LD2), (C) 3  order from LD1, and (D) 3  order from LD2. The pictures of the specimens are the
                           nd
                                                        rd
                                                                          rd
            configurations before and after the cyclic tests.
                         A                                   B













            Figure 9. Comparisons of effective stress-strain curves obtained from quasi-static compression experiments and FE simulations for 2  order fractal
                                                                                                    nd
            structure with a relative density of 20% from (A) loading direction 1 and (B) loading direction 2.
              As displayed in Figure 9B, the effective stress (Equation   When comparing the response from LD1 to LD2, the
            II) within the 1  order structure in the experiment dropped   difference between the experiment and the simulation was
                        st
            drastically at a strain of 22%. However, there was no obvious   slightly smaller. This phenomenon is a result of the design
            reduction in stress, but rather a long phase of plateau from   of structures. As shown in Figure 4A and B, the total contact
            the numerical simulation. In other words, no snap-in   surface between the compression plates and specimens was
            was observed in the FE modeling. This is ascribed to the   larger  in  LD1 (Figure  4A).  All the specimens  deformed
            perfectly symmetric parts and ideal boundary conditions   symmetrically in the FE models considering the symmetric
            in the numerical model. Meanwhile, the experimental   design. During the experiment, structures with less contact
            condition and 3D-printed specimens differed from what   surface were more prone to deform asymmetrically due to
            was established in the modeling. It is widely known   misaligned loading conditions or manufacturing defects.
            that defects commonly exist in FFF technology using
                                      [49]
            carbon fiber-reinforced polymer . Any misalignment of   3.3. Stress distributions
            compressive loading or imperfections within the fabricated   Failure of engineering components is mostly due to stress
            structures could give the structures opportunity to behave   within the structure. The stress distribution reflects the
            in an asymmetric way, leading to the snap-in phenomenon.  level of structural design and affects the structural safety


            Volume 2 Issue 1 (2023)                         9                        https://doi.org/10.36922/msam.53
