Materials Science in Additive Manufacturing Mechanical properties of NiTi TPMS
A B C
D E F

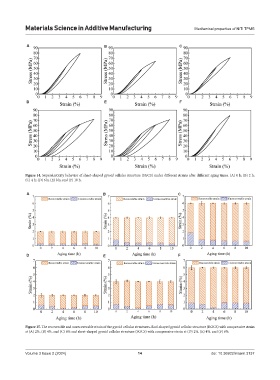

Figure 14. Superelasticity behavior of sheet-shaped gyroid cellular structure (SGCS) under different strains after different aging times. (A) 0 h; (B) 2 h;
(C) 4 h; (D) 6 h; (E) 8 h; and (F) 10 h.
A B C
D E F
Figure 15. The recoverable and unrecoverable strain of the gyroid cellular structures. Rod-shaped gyroid cellular structure (RGCS) with compressive strain
at (A) 2%, (B) 4%, and (C) 6% and sheet-shaped gyroid cellular structure (SGCS) with compressive strain at (D) 2%, (E) 4%, and (F) 6%.
