Page 20 - MSAM-4-3
P. 20

Materials Science in Additive Manufacturing                               Ceramic vat photopolymerization




                                                          A                   B










                                                          C                   D

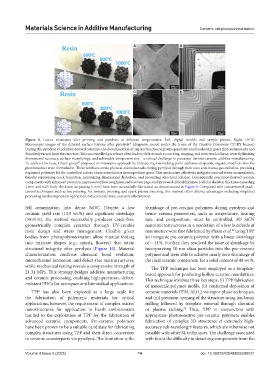

            Figure  8. Lattice structures after printing and pyrolysis at different temperatures. Left: digital models and sample photos. Right: (A-D)
            Microscopic images of the detailed surface features after pyrolysis  (diagrams reused under the terms of the Creative Commons CC-BY license)
                                                        76
            During the pyrolysis of polymer-derived ceramics, the decomposition of organic functional groups generates small molecular gases that continuously and
            disorderly escape from the structure. This uncontrolled gas release often leads to defects such as cracking, warping, and structural collapse, severely limiting
            dimensional accuracy, surface morphology, and achievable component size – a critical challenge in precursor-derived ceramic additive manufacturing.
            To address this issue, Chen’s group  proposed an innovative approach by introducing low-melting-point additives or specific organic modifiers into the
                                  87
            photosensitive resin formulation. These additives create physical microchannels during pyrolysis through their own continuous gas emission, providing
            organized pathways for the controlled release of macromolecular decomposition gases. This mechanism effectively mitigates internal stress accumulation,
            thereby suppressing crack formation, minimizing dimensional distortion, and preventing structural collapse. Consequently, precursor-derived ceramic
            components with enhanced precision, improved surface roughness, reduced warpage, and increased critical thickness (cellular skeleton thickness exceeding
            2 mm and bulk body thickness surpassing 5 mm) have been successfully fabricated, as demonstrated in Figure 9. Compared with conventional crack-
            control techniques such as hot pressing, hot isostatic pressing, and spark plasma sintering, this method offers distinct advantages including simplified
            processing (ambient pressure operation), reduced cycle time, and cost-effectiveness.

            full ceramization into dense SiOC. Despite a low   shrinkage of pre-ceramic polymers during pyrolysis and
            ceramic yield rate (13.5 wt.%) and significant shrinkage   hence  various  parameters,  such  as temperature,  heating
            (59.91%), the method successfully produces crack-free,   rate, and composition, must be controlled. 3D SiCN
            geometrically  complex ceramics through UV-curable   nano/microstructures in a resolution of a few hundreds of
            resin  design  and  stress  management.  Flexible  green   nanometers were first fabricated by Pham et al.  using TPP
                                                                                                    89
            bodies from photopolymerization allow manual folding   an inorganic pre-ceramic polymer with a linear shrinkage
            into intricate shapes (e.g., spirals, flowers) that retain   of ~ 41%. Further, they resolved the issue of shrinkage by
            structural integrity after pyrolysis (Figure  10). Material   incorporating 10 nm silica particles into the pre-ceramic
            characterization confirms chemical bond evolution,   polymer and were able to achieve nearly zero shrinkage of
            microchannel formation, and defect-free microstructures,   the final ceramic component for a solid content of 40 wt.%.
            while mechanical testing reveals a compressive strength of   The TPP technique has been employed as a template-
            21.31 MPa. This strategy bridges additive manufacturing   based approach for producing hollow ceramic nanolattices.
            and ceramic processing, enabling high-precision, defect-  This technique involves three key steps: (i) TPP fabrication
            resistant PDCs for aerospace and biomedical applications.  of nanoscale polymer molds, (ii) conformal deposition of

              TPP  has  also  been  explored  at  a  large  scale  for   ceramic materials (TiN, Al O ) via vapor-phase techniques,
                                                                                    2
                                                                                      3
            the fabrication of polymeric materials for optical   and (iii) precision opening of the structure using ion-beam
            applications; however, the requirement of complex micro/  milling followed by template removal through chemical
            nanostructures for application in harsh environments   or plasma etching.  Thus, TPP in conjunction with
                                                                               90
            has led to the exploration of TPP for the fabrication of   appropriate photosensitive pre-ceramic polymers enables
            advanced ceramic components. Pre-ceramic polymers   fabrication of complex 3D structures of extremely high-
            have been proven to be a suitable candidate for fabricating   accuracy sub-wavelength features, which are otherwise not
            complex structures using TPP and their direct conversion   possible with other SL techniques. The challenge associated
            to ceramic counterparts via pyrolysis. The limitation is the   with this is the difficulty in detaching components from the


            Volume 4 Issue 3 (2025)                         14                        doi: 10.36922/MSAM025200031
   15   16   17   18   19   20   21   22   23   24   25
