Gene & Protein in Disease Drugs and immune infiltration in IPF

A B

C

D

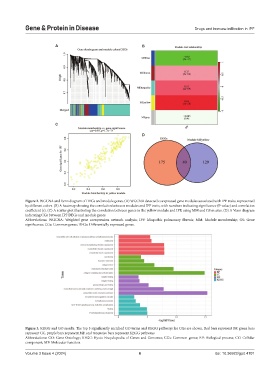

Figure 2. WGCNA and Venn diagram of DEGs and module genes. (A) WGCNA detected coexpressed gene modules associated with IPF traits, represented
by different colors. (B) A heatmap showing the correlation between modules and IPF traits, with numbers indicating significance (P-value) and correlation
coefficient (r). (C) A scatter plot illustrating the correlation between genes in the yellow module and IPF, using MM and GS as axes. (D) A Venn diagram
indicating CGs between IPF DEGs and module genes.
Abbreviations: WGCNA: Weighted gene coexpression network analysis; IPF: Idiopathic pulmonary fibrosis; MM: Module membership; GS: Gene
significance; CGs: Common genes; DEGs: Differentially expressed genes.

Figure 3. KEGG and GO results. The top 5 significantly enriched GO terms and KEGG pathways for CGs are shown. Red bars represent BP, green bars
represent CC, purple bars represent MF, and turquoise bars represent KEGG pathways
Abbreviations: GO: Gene Ontology; KEGG: Kyoto Encyclopedia of Genes and Genomes; CGs: Common genes; BP: Biological process; CC: Cellular
component; MF: Molecular function.
