International Journal of Bioprinting PEDOT/PSS-based sensors

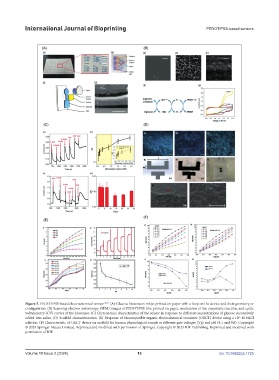

Figure 5. PEDOT:PSS-based electrochemical sensor. 86,91 (A) Glucose biosensors inkjet printed on paper with a loop on the device and their geometry or
configuration. (B) Scanning electron microscopy (SEM) images of PEDOT:PSS film printed on paper, mechanism of the enzymatic reaction, and cyclic
voltammetry (CV) curves of the biosensor. (C) Current-time characteristics of the sensor in response to different concentrations of glucose successively
added into saliva. (D) Scaffold characterization. (E) Response of biocompatible organic electrochemical transistor (OECT) device using a 10 M NaCl
-3
solution. (F) Characteristic of OECT device on scaffold for human physiological sample at different gate voltages (Vg) and pH (4.1 and 9.6). Copyright
© 2023 Springer Nature Limited. Reprinted and modified with permission of Springer. Copyright © 2023 IOP Publishing. Reprinted and modified with
permission of IOP.
