Page 240 - IJB-10-3

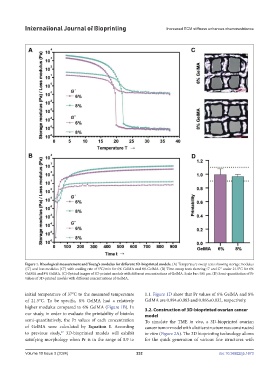

International Journal of Bioprinting Increased ECM stiffness enhances chemoresistance

Figure 1. Rheological measurement and Young’s modulus for different 3D-bioprinted models. (A) Temperature sweep tests showing storage modulus
(G′) and loss modulus (G″) with cooling rate of 5°C/min for 6% GelMA and 8% GelMA. (B) Time sweep tests showing G′ and G″ under 21.5°C for 6%
GelMA and 8% GelMA. (C) Optical images of 3D-printed models with different concentrations of GelMA. Scale bar: 500 μm. (D) Semi-quantitation of Pr
values of 3D-printed models with different concentrations of GelMA.

initial temperature of 37°C to the measured temperature 1.1. Figure 1D show that Pr values of 6% GelMA and 8%
of 21.5°C. To be specific, 8% GelMA had a relatively GelMA are 0.994±0.083 and 0.966±0.032, respectively.
higher modulus compared to 6% GelMA (Figure 1B). In 3.2. Construction of 3D-bioprinted ovarian cancer
our study, in order to evaluate the printability of bioinks model
semi-quantitatively, the Pr values of each concentration To simulate the TME in vivo, a 3D-bioprinted ovarian
of GelMA were calculated by Equation I. According cancer tumor model with a lattice structure was constructed
to previous study, 3D-bioprinted models will exhibit in vitro (Figure 2A). The 3D bioprinting technology allows
37
satisfying morphology when Pr is in the range of 0.9 to for the quick generation of various fine structures with

Volume 10 Issue 3 (2024) 232 doi: 10.36922/ijb.1673
