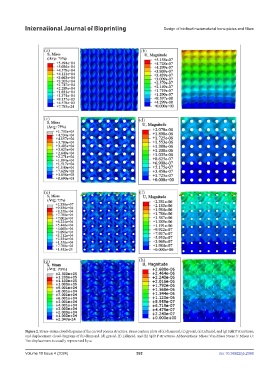

Figure 2. Stress–strain cloud diagrams of the curved porous structure: stress contour plots of (a) diamond, (c) gyroid, (e) Lidinoid, and (g) Split P structures;
and displacement cloud diagrams of (b) diamond, (d) gyroid, (f) Lidinoid, and (h) Split P structures. Abbreviations: Mises: Von Mises Stress; S: Mises; U:
The displacement is usually represented by u.
