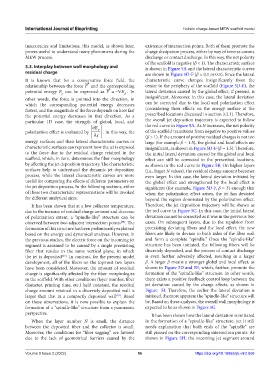

International Journal of Bioprinting                               Holistic charge-based MEW scaffold model


            inaccuracies and limitations, this model, as shown later,   existence of intersection points. Both of them promote the
            proves useful to understand many phenomena during the   charge dissipation process, either by way of inverse corona
            MEW process.                                       discharge or contact discharge. In this way, the net polarity
                                                               of the scaffold is negative (β < 1). The characteristic surface
            3.3. Interplay between wall morphology and         is shown in Figure 5A and the lateral characteristic curves
            residual charge                                    are shown in Figure 5D-F (β = 0.1 or 0.5). Since the lateral
            It is known that for  a conservative  force field,  the   characteristic curve changes insignificantly from the
                                     →
            relationship between the force F  and the corresponding   center to the periphery of the scaffold (Figure 5D-F), the
                                              →
            potential energy  E  can be expressed as  F =−∇E . In   lateral deviation caused by the global effect, if present, is
                                                      p
                           p
            other words, the force is pointed into the direction, in   insignificant. Moreover, in this case, the lateral deviation
            which  the  corresponding  potential  energy  decreases   can be corrected due to the local and polarization effect
            fastest, and the magnitude of the force depends on how fast   (considering their effects on the energy surface at the
            the potential energy decreases in that direction. As a   prescribed locations discussed in section 3.2.1). Therefore,
            particular 1D case, the strength of global, local, and   the overall jet deposition trajectory is expected to follow
                                        ∂E p                   the red curve in Figure 5A. As N increases, the net polarity
            polarization effect is evaluated by   . In this way, the   of the scaffold transitions from negative to positive values
                                         ∂x                    (β > 1). If the amount of positive residual charges is not too
            energy surfaces and their lateral characteristic curves or   large (for example β = 1.5), the global and local effects are
            characteristic surfaces can represent how the jet is exposed   insignificant, as shown in Figure 5D-F (β = 1.5). Therefore,
            to the force due to the residual charge retained in the   the initial lateral deviation caused by the global and local
            scaffold, which, in turn, determines the fiber morphology   effect can still be corrected to the prescribed locations,
            by affecting the jet deposition trajectory. The characteristic   as shown in the red curve in Figure 5B. On higher layers
            surfaces  help  to  understand  the  dynamic  jet  deposition   (i.e., larger N values), the residual charge amount becomes
            process, while the lateral characteristic curves are more   even larger. In this case, the lateral deviation initiated by
            useful for comparing the effects of different parameters on   the global effect and strengthened by the local effect is
            the jet deposition process. In the following sections, either   significant (for example, Figure 5D-F, β = 3) enough that
            of these two characteristic representations will be invoked   when the polarization effect arises, the jet has deviated
            for different analytical aims.                     beyond the region dominated by the polarization effect.
              It has been shown that at a low collector temperature,   Therefore, the jet deposition trajectory will be shown as
            due to the increase of residual charge amount and decrease   the red curve in Figure 5C. In this case, the initial lateral
            of polarization extent, a “spindle-like” structure can be   deviation cannot be corrected as it was in the previous two
            observed between two adjacent intersection points . The   cases. On subsequent layers, due to the repulsion from
                                                    [33]
            formation of this structure has been preliminarily explained   preexisting deviating fibers and the local effect, the new
            based on the energy and dynamical analyses. However, in   fibers are likely to deviate to both sides of the fiber wall
            the previous studies, the electric force on the incoming jet   and form a complete “spindle.” Once the “spindle-like”
            segment is assumed to be caused by a single preexisting   structure has been initiated, the following fibers will be
            fiber that resides in the same vertical plane, in which   discretely deposited, and the process of contact discharge
            the jet is deposited . In contrast, for the present model   is even further adversely affected, resulting in a larger
                           [33]
            development, all of the fibers on the topmost two layers   β. A larger β means a stronger global and local effect, as
            have been considered. Moreover, the amount of residual   shown in Figure 5D and 5E, which, further, promote the
            charge is significantly affected by the fiber morphologies   formation of the “spindle-like” structure. In other words,
            in the scaffold. With other conditions (layer number, fiber   there exists a positive feedback control loop between the
            diameter, printing time, etc.) held constant, the residual   jet deviation caused by the charge effects, as shown in
            charge amount retained in a discretely deposited wall is   Figure   5I. Therefore, the earlier the lateral deviation is
            larger  than that in  a compactly deposited  wall . Based   initiated, the more apparent the “spindle-like” structure will
                                                  [30]
            on these observations, it is now possible to explain the   be. Based on these analyses, the overall wall morphology is
            formation of a “spindle-like” structure from a panoramic   expected to be as shown in Figure 5G.
            perspective.                                         It has been shown how the lateral deviation is initiated
              When the layer number  N is small, the distance   in the formation of a “spindle-like” structure, yet it still
            between the deposited fiber and the collector is small.   needs explanation that both ends of the “spindle” are
            Moreover, the conditions for “fiber sagging” are favored   still pinned on the corresponding intersection points. As
            due to the lack of geometrical barriers caused by the   shown in Figure 5H, the incoming jet segment around
