International Journal of Bioprinting Vector-based G-code generation for biofabrication

infill direction and shape, as well as the sequence and slides. For example, when generating structures that
path direction. require a specific shift in orientation in the direction of the
layer infill lines—such as those mimicking collagen or cell
To illustrate this code-generation approach, several alignment in tissues like the cornea or heart—this method
exemplary bioprinted structures were created on glass proves beneficial. 35,36 As demonstrated in Figure 6A, a

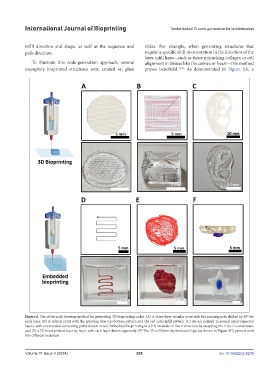

Figure 6. Use of the path drawing method for generating 3D bioprinting codes. (A) A three-layer circular print with the printing path shifted by 45° for
each layer. (B) A cubical print with the spiraling blue top/bottom pattern and the red solid infill pattern. (C) An ear printed in several interconnected
layers, with unextruded connecting paths drawn in red. Embedded bioprinting of a (D) meander in the Z direction by swapping the Y for Z coordinates,
and (E) a 3D heart printed layer by layer, with each layer drawn separately. (F) The 3D cell from the institute’s logo (as shown in Figure 3G) printed with
two different materials.
