International Journal of Bioprinting Internally-crosslinked ADA/Alg/Gel bioinks

reported contradictory results on the effect of oxidation on exhibited higher G′ than G″, demonstrating their hydrogel
G and M groups, suggesting either a preferential reaction of state. G′ increased as a function of both Alg content and
G groups to oxidation 52,53 or no difference between the two CaCO concentration (Table S2, Supporting Information).
3
groups. Differences in the results might be associated with At 3% (w/v) CaCO , samples with the highest Alg content
54
3
the different M/G ratios of the starting Alg being oxidized (ADA/Alg_50/50_C3) exhibited higher G′ compared to
and other factors, such as M and G block distribution. ADA/Alg_66/33_C3 (p < 0.0002). Indeed, Alg is primarily
Finally, ADA Mv was calculated to be 22 ± 1 kDa based responsible for the internal crosslinking mechanism of
on the Mark-Houwink-Sakurada equation, corresponding ADA/Alg hydrogels. ADA has a reduced ability to undergo
to a 93.5% reduction relative to Alg Mv (340 ± 5 kDa). crosslinking with calcium ions due to the chemical
50,51,57
Oxidation by sodium periodate triggers the scission of modification of its chains and reduced MW. Ring-
polysaccharide chains, causing a decrease in ADA MW and opening of ADA chains upon oxidation weakens or even
intermolecular interactions. Coherently to the literature, hinders ionic crosslinking, which requires the presence
55
MW reduction between 80 and 90% was thus expected of approximately 20 consecutive guluronate groups for
34,58
with an oxidation degree of 25–30%. 51,56 forming egg-box ionic junctions with calcium ions.
In this work, an initial characterization of ADA (data
3.2. ADA/Alg-based hydrogels not shown) confirmed its low ionic crosslinking ability
The ADA/Alg samples were first optimized by varying the in the presence of CaCO and GDL, as suggested by the
3
Alg:ADA ratio, as well as CaCO and GDL concentrations, formation of soft hydrogels with low G′ (< 100 Pa) even at
3
to obtain suitable stiffness for potential cardiac TE high polymer concentrations (i.e., 10% [w/v]).
applications. Hydrogels with the compositions reported in At the same Alg:ADA ratio, hydrogels with higher calcium
Table 1 were characterized through frequency sweep tests. content (i.e., ADA/Alg_50/50_C6) exhibited higher
Initially, the influence of the Alg:ADA ratio and calcium G′ compared to those with lower CaCO content (i.e.,
3
concentration was studied at fixed GDL content (Figure 2A ADA/Alg_50/50_C3) (p < 0.0001). Overall, the ADA/
and B). As displayed in Figure 2A, all compositions Alg_50/50_C6 composition was selected as it displayed the

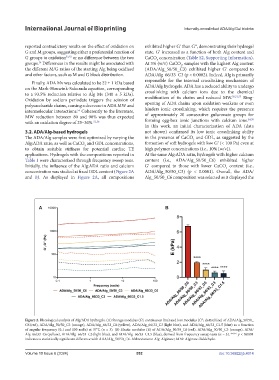

Figure 2. Rheological analysis of Alg/ADA hydrogels. (A) Storage modulus (G′; continuous line) and loss modulus (G″; dotted line) of ADA/Alg_50/50_
C6 (red), ADA/Alg_50/50_C3 (orange), ADA/Alg_66/33_C6 (yellow), ADA/Alg_66/33_C3 (light blue), and ADA/Alg_66/33_C1.5 (blue) as a function

of angular frequency (0.1 and 100 rad/s) at 37°C (n = 3). (B) Elastic modulus (E) of ADA/Alg_50/50_C6 (red), ADA/Alg_50/50_C3 (orange), ADA/

Alg_66/33_C6 (yellow), ADA/Alg_66/33_C3 (light blue), and ADA/Alg_66/33_C1.5 (blue), derived from frequency sweep tests (n = 3). **** p < 0.0001

indicates a statistically significant difference with ADA/Alg_50/50_C6. Abbreviations: Alg: Alginate; ADA: Alginate dialdehyde.
