Page 67 - IJB-8-2
P. 67
Chand, et al.
A B C
D E

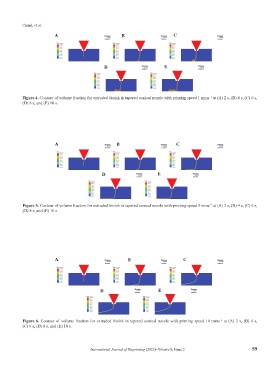

Figure 4. Contour of volume fraction for extruded bioink in tapered conical nozzle with printing speed 1 mms at (A) 2 s, (B) 4 s, (C) 6 s,
−1
(D) 8 s, and (E) 10 s.
A B C
D E
Figure 5. Contour of volume fraction for extruded bioink in tapered conical nozzle with printing speed 5 mms at (A) 2 s, (B) 4 s, (C) 6 s,
−1
(D) 8 s, and (E) 10 s
A B C
D E
Figure 6. Contour of volume fraction for extruded bioink in tapered conical nozzle with printing speed 10 mms at (A) 2 s, (B) 4 s,
−1
(C) 6 s, (D) 8 s, and (E) 10 s.
International Journal of Bioprinting (2022)–Volume 8, Issue 2 59
