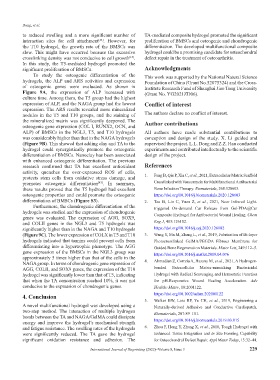

Page 237 - IJB-8-3

Dong, et al.
to reduced swelling and a more significant number of TA-mediated composite hydrogel promoted the significant
interaction sites for cell attachment . However, for proliferation of BMSCs and osteogenic and chondrogenic
[42]
the T10 hydrogel, the growth rate of the BMSCs was differentiation. The developed multifunctional composite
slow. This might have occurred because the excessive hydrogel could be a promising candidate for osteochondral
crosslinking density was not conducive to cell growth . defect repair in the treatment of osteoarthritis.
[15]
In this study, the T5-mediated hydrogel promoted the
significant proliferation of BMSCs. Acknowledgments
To study the osteogenic differentiation of the This work was supported by the National Natural Science
hydrogels, the ALP and ARS activities and expression Foundation of China (Grant No.52075324) and the Cross-
of osteogenic genes were evaluated. As shown in Institute Research Fund of Shanghai Jiao Tong University
Figure 9A, the expression of ALP increased with (Grant No. YG2021ZD06).
culture time. Among them, the T5 group had the highest
expression of ALP, and the NAGA group had the lowest Conflict of interest
expression. The ARS results revealed more mineralized
nodules in the T5 and T10 groups, and the staining of The authors declare no conflict of interest.
the mineralized matrix was significantly deepened. The Author contributions
osteogenic gene expression (COL I, RUNX2, OCN, and
ALP) of BMSCs in the NGL3, T5, and T10 hydrogels All authors have made substantial contributions to
was considerably higher than that in the NAGA hydrogels conception and design of the study. X. Li guided and
(Figure 9B). This showed that adding clay and TA to the supervised the project. L.L. Dong and Z.Z. Han conducted
hydrogel could synergistically promote the osteogenic experiments and contributed intellectually to the scientific
differentiation of BMSCs. Nanoclay has been associated design of the project.
with enhanced osteogenic differentiation. The previous
research confirmed that TA has excellent antioxidant References
activity, quenches the over-expressed ROS of cells,
protects stem cells from oxidative stress damage, and 1. Fang B, Qiu P, Xia C, et al., 2021, Extracellular Matrix Scaffold
promotes osteogenic differentiation . In summary, Crosslinked with Vancomycin for Multifunctional Antibacterial
[43]
these results proved that the T5 hydrogel had excellent Bone Infection Therapy. Biomaterials, 268:120603.
osteogenic properties and could promote the osteogenic https://doi.org/10.1016/j.biomaterials.2020.120603
differentiation of BMSCs (Figure S3). 2. Tao B, Lin C, Yuan Z, et al., 2021, Near Infrared Light-
Furthermore, the chondrogenic differentiation of the triggered On-demand Cur Release from Gel-PDA@Cur
hydrogels was studied and the expression of chondrogenic Composite Hydrogel for Antibacterial Wound Healing. Chem
genes was evaluated. The expression of AGG, SOX9,
and COLII genes in the NGL3 and T5 hydrogels was Eng J, 403:126182.
significantly higher than in the NAGA and T10 hydrogels https://doi.org/10.1016/j.cej.2020.126182
(Figure 9C). The lower expression of COLX in T5 and T10 3. Wang Y, Ma M, Zhang L, et al., 2019, Fabrication of Bi-layer
hydrogels indicated that tannins could prevent cells from Photocrosslinked GelMA/PEGDA Fibrous Membrane for
differentiating into a hypertrophic phenotype. The AGG Guided Bone Regeneration Materials. Mater Lett, 249:112–5.
gene expression of the BMSCs in the NGL3 group was https://doi.org/10.1016/j.matlet.2019.04.076
approximately 5 times higher than that of the cells in the
NAGA group. In terms of chondrogenic gene expression of 4. Ahmadian Z, Correia A, Hasany M, et al., 2021, A Hydrogen-
AGG, COLII, and SOX9 genes, the expression of the T10 bonded Extracellular Matrix-mimicking Bactericidal
hydrogel was significantly lower than that of T5, indicating Hydrogel with Radical Scavenging and Hemostatic Function
that when the TA concentration reached 10%, it was not for pH-Responsive Wound Healing Acceleration. Adv
conducive to the expression of chondrogenic genes. Healthc Mater, 10:2001122.

4. Conclusion https://doi.org/10.1002/adhm.202001122
5. Walker BW, Lara RP, Yu CH, et al., 2019, Engineering a
A novel multifunctional hydrogel was developed using a Naturally-derived Adhesive and Conductive Cardiopatch.
two-step method. The interaction of multiple hydrogen Biomaterials, 207:89–101.
bonds between the TA and NAGA/GelMA could dissipate
energy and improve the hydrogel’s mechanical strength https://doi.org/10.1016/j.biomaterials.2019.03.015
and fatigue resistance. The swelling rates of the hydrogels 6. Zhou F, Hong Y, Zhang X, et al., 2018, Tough Hydrogel with
were significantly reduced. The TA gave the hydrogel Enhanced Tissue Integration and in Situ Forming Capability
significant oxidation resistance and adhesion. The for Osteochondral Defect Repair. Appl Mater Today, 13:32–44.

International Journal of Bioprinting (2022)–Volume 8, Issue 3 229
