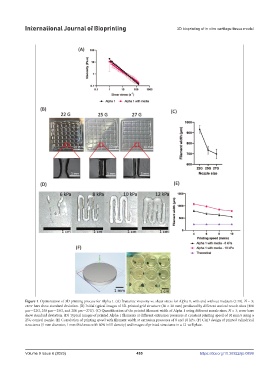

Figure 1. Optimization of 3D printing process for Alpha 1. (A) Dynamic viscosity vs. shear stress for Alpha 1, with and without medium (1:10). N = 3;
error bars show standard deviation. (B) Initial typical images of 3D-printed grid structure (30 × 30 mm) produced by different conical nozzle sizes (400
μm—22G, 250 μm—25G, and 200 μm—27G). (C) Quantification of the printed filament width of Alpha 1 using different nozzle sizes. N = 3; error bars
show standard deviation. (D) Typical images of printed Alpha 1 filaments at different extrusion pressures at constant printing speed of 10 mm/s using a
25G conical nozzle. (E) Correlation of printing speed with filament width at extrusion pressures of 8 and 10 kPa. (F) CAD design of printed cylindrical
structures (5 mm diameter, 1 mm thickness with 60% infill density) and images of printed structures in a 12-well plate.
