Journal of Chinese
Architecture and Urbanism RuiXue Multi-Hall in reciprocal structures

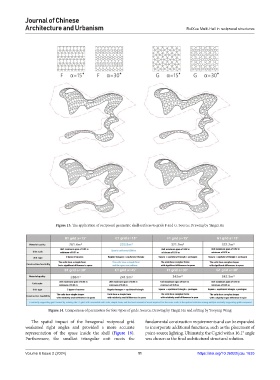

Figure 13. The application of reciprocal geometric shell surfaces to grids F and G. Source: Drawing by Yingzi Hu
Figure 14. Comparison of parameters for four types of grids. Source: Drawing by Yingzi Hu and editing by Yueyang Wang
The spatial impact of the hexagonal reciprocal grid fundamental construction requirements and can be expanded
weakened right angles and provided a more accurate to incorporate additional functions, such as the placement of
representation of the space inside the shell (Figure 16). point-source lighting. Ultimately, the C grid with a 16.1° angle
Furthermore, the smallest triangular unit meets the was chosen as the final architectural structural solution.
