Page 41 - JCAU-7-2

Journal of Chinese
Architecture and Urbanism Moisture damage in plastered heritage building

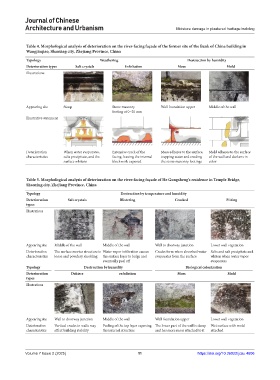

Table 4. Morphological analysis of deterioration on the river‑facing façade of the former site of the Bank of China building in
Wangjiaqiao, Shaoxing city, Zhejiang Province, China
Typology Weathering Destruction by humidity
Deterioration types Salt crystals Exfoliation Moss Mold
Illustrations

Appearing site Stoop Stone masonry Wall foundation upper Middle of the wall
footing at 0~20 mm
Illustrative statement

Deterioration When water evaporates, Extensive crack of the Moss adheres to the surface, Mold adheres to the surface
characteristics salts precipitate, and the facing, leaving the internal trapping water and eroding of the wall and darkens in
surface whitens blockwork exposed the stone masonry footings color

Table 5. Morphological analysis of deterioration on the river‑facing façade of He Gongsheng’s residence in Temple Bridge,
Shaoxing city, Zhejiang Province, China

Typology Destruction by temperature and humidity
Deterioration Salt crystals Blistering Cracked Pitting
types
Illustrations

Appearing site Middle of the wall Middle of the wall Wall to doorway junction Lower wall vegetation
Deterioration The surface mortar structure is Water vapor infiltration causes Cracks form when absorbed water Salts and salt precipitate and
characteristics loose and powdery shedding the surface layer to bulge and evaporates from the surface whiten when water vapor
eventually peel off evaporates
Typology Destruction by humidity Biological colonization
Deterioration Dehisce exfoliation Moss Mold
types
Illustrations

Appearing site Wall to doorway junction Middle of the wall Wall foundation upper Lower wall vegetation
Deterioration Vertical cracks in walls may Peeling of the top layer exposing The lower part of the wall is damp Wet surface with mold
characteristics affect building stability the internal structure and has more moss attached to it attached

Volume 7 Issue 2 (2025) 11 https://doi.org/10.36922/jcau.4606
