Page 38 - JCAU-7-2

Journal of Chinese
Architecture and Urbanism Moisture damage in plastered heritage building

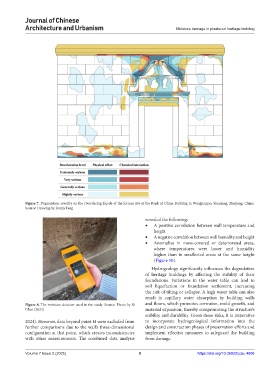

Figure 7. Degradation severity on the river-facing façade of the former site of the Bank of China Building in Wangjiaqiao, Shaoxing, Zhejiang, China.
Source: Drawing by Ruxin Tang

revealed the following:
• A positive correlation between wall temperature and
height
• A negative correlation between wall humidity and height
• Anomalies in moss-covered or deteriorated areas,
where temperatures were lower and humidity
higher than in unaffected areas at the same height
(Figure 10).
Hydrogeology significantly influences the degradation
of heritage buildings by affecting the stability of their
foundations. Variations in the water table can lead to
soil liquefaction or foundation settlement, increasing
the risk of tilting or collapse. A high water table can also
result in capillary water absorption by building walls
Figure 8. The moisture detector used in the study. Source: Photo by Si and floors, which promotes corrosion, mold growth, and
Chen (2024) material expansion, thereby compromising the structure’s
stability and durability. Given these risks, it is imperative
2024). However, data beyond point H were excluded from to incorporate hydrogeological information into the
further comparisons due to the wall’s three-dimensional design and construction phases of preservation efforts and
configuration at that point, which creates inconsistencies implement effective measures to safeguard the building
with other measurements. The combined data analysis from damage.

Volume 7 Issue 2 (2025) 8 https://doi.org/10.36922/jcau.4606
