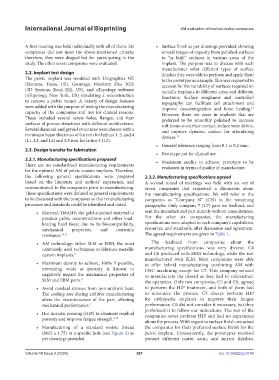

International Journal of Bioprinting                              AM evaluation of medical device companies




            A first meeting was held individually with all of them. Six   •  Surface finish as per drawings provided, showing
            companies did not meet the above-mentioned criteria;      several ranges of rugosity from polished surfaces
            therefore, they were disqualified for participating in the   to “as built” surfaces in various areas of the
            study. The other seven companies were evaluated.          implant. The purpose was to discuss with each
                                                                      manufacturer  what  different  types  of  surface
            2.2. Implant test design                                  finishes they were able to perform and apply them
            The pelvic implant was modeled with Unigraphics NX        to the prototype as a sample. This was requested to
            (Siemens, Texas, US), Geomagic Freeform Plus 2021         account for the variability of surfaces required on
            (3D Systems, Rock Hill, US), and nTopology software       metallic implants in different areas and different
            (nTopology, New York, US) simulating a reconstruction     functions. Surface roughness and controlled
            to remove a pelvic tumor. A variety of design features    topography can facilitate cell attachment and
            were added with the purpose of testing the manufacturing   improve osseointegration and bone healing.
                                                                                                            13
            capacity of the companies and not for clinical reasons.   However,  there  are  areas  in  implants  that  are
            These included several screw holes, flanges, and four     preferred to  be  smoothly  polished to  increase
            surfaces of porous structures with different architectures.   soft tissue-to-surface contact, reduce wear debris,
            Several diamond and gyroid structures were chosen with a   and  improve  dynamic  contact  for  articulating
            minimum beam thickness of 0.6 mm for lattices 1, 3, and 4   devices. 14
            (L1, L3, and L4) and 0.5 mm for lattice 2 (L2).
                                                                    •  General tolerance ranging from 0.1 to 0.2 mm.
            2.3. Design transfer for fabrication
                                                                    •  Prototype not for clinical use.
            2.3.1. Manufacturing specifications proposed            •  Maximum quality to achieve: prototype to be
            There are no standardized manufacturing requirements      evaluated in terms of quality of manufacture.
            for the optimal AM of pelvic custom implants. Therefore,
            the following general specifications were prepared   2.3.2. Manufacturing specifications agreed
            based on the literature and authors’ experience, and   A second round of meetings was held with six out of
            communicated to the companies prior to manufacturing.   seven companies that requested a discussion about
            These specifications were defined as general requirements   the manufacturing specifications. We will refer to the
            to be discussed with the companies so their manufacturing   companies  as  “Company  N”  (CN)  in  the  remaining
            processes and standards could be identified and noted.   paragraphs. Only company 7 (C7) gave no feedback and
                 •  Material: Ti6Al4V, the gold-standard material to   sent the manufactured part directly without consultations.
                   produce pelvic reconstructions and other load-  For the other six companies, the manufacturing
                   bearing hard tissue due to its biocompatibility,   specifications were adapted to each company’s capabilities,
                   mechanical   properties,  and   corrosion   resources, and standards, after discussion and agreement.
                   resistance. 10,11                           The agreed requirements are given in Table 1.
                 •  AM technology: either SLM or EBM, the most    The  feedback  from   companies  about   the
                   commonly used techniques to fabricate metallic   manufacturing specifications was very diverse. C4
                   custom implants. 7                          and C6 produced with EBM technology, while the rest
                                                               manufactured with SLM. Most companies were able
                 •  Maximum density to achieve, 100% if possible,   to offer hybrid manufacturing combining AM with
                   preventing voids as porosity is known to    CNC machining except for C7. This company refused
                   negatively impact the mechanical properties of   to  manufacture  the  thread as they had to  subcontract
                   SLM and EBM parts. 3                        the operation. Only two companies, C5 and C6, agreed
                 •  Avoid residual stresses from non-uniform heat.   to perform the HIP treatment, and both of them had
                   The cooling rate during additive manufacturing   to outsource the process. C5 always perform HIP
                   alters the microstructure of the part, affecting   for orthopedic implants to improve their fatigue
                   mechanical performance. 7                   performance. C6 did not consider it necessary, but they
                                                               performed it to follow our indications. The rest of the
                 •  Hot isostatic pressing (HIP) to eliminate residual   companies never perform HIP and had no experience
                   porosity and improve fatigue strength. 2,12
                                                               about the process. With regard to surface finish, we asked
                 •  Manufacturing of a standard metric thread    the companies for their preferred surface finish for the
                   (M12 x 1.75) in a specific hole (see Figure 1) as   pelvic implant. Consequently, the prototypes received
                   per drawings provided.                      present different matte, satin, and mirror finishes.


            Volume 10 Issue 2 (2024)                       367                                doi: 10.36922/ijb.0140
