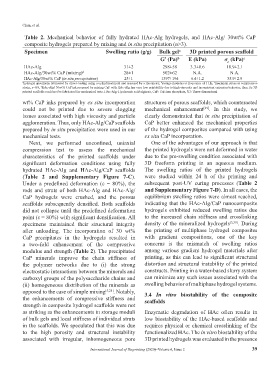

Page 43 - IJB-6-2
P. 43

Chen, et al.

           Table 2.  Mechanical  behavior  of  fully  hydrated  HAc-Alg  hydrogels,  and  HAc-Alg/  30wt%  CaP
           composite hydrogels prepared by mixing and in situ precipitation (n>3).
           Specimen                           Swelling ratio (g/g)   Bulk gel a   3D printed porous scaffold
                                                                     G’ (Pa) b   E (kPa)        σ  (kPa) c
                                                                                                  c
           HAc-Alg                                    31±2            298±58      3.3±0.6        18.9±2.1
           HAc-Alg/30wt% CaP (mixing) d               28±1            502±62       N.A.            N.A.
           HAc-Alg/30wt% CaP (in situ precipitation)  25±1            1397±194    6.4±1.2         35.9±2.9
           a hydrogel specimens fabricated by direct casting using a cylindrical mold and assessed by a rheometer,  storage modulus at frequency of 1 Hz,  maximum stress at compressive
                                                                                            c
                                                                     b
                  d
           strain, ε=0.8,  HAc-Alg/ 30wt% CaP ink prepared by mixing CaP with HAc-Alg has very low printability due to high viscosity and inconsistent extrusion behavior; thus, its 3D
           printed scaffolds could not be fabricated for mechanical tests. HAc-Alg: Hyaluronic acid-alginate, CaP: Calcium phosphate, 3D: Three-dimensional
           wt% CaP inks prepared by ex situ incorporation      structures of porous scaffolds, which counteracted
           could not be printed  due to severe clogging        mechanical  enhancement .  In this  study,  we
                                                                                        [29]
           issues associated with high viscosity and particle   clearly demonstrated that in situ precipitation of
           agglomeration. Thus, only HAc-Alg/CaP scaffolds     CaP better  enhanced  the  mechanical  properties
           prepared by in situ precipitation were used in our   of the hydrogel composites compared with using
           mechanical tests.                                   ex situ CaP incorporation.
             Next,  we  performed  unconfined,  uniaxial         One of the advantages of our approach is that
           compression  test  to  assess the  mechanical       the printed hydrogels were not deformed in water
           characteristics  of  the  printed  scaffolds  under   due to the pre-swelling condition associated with
           significant  deformation  conditions  using  fully   3D freeform  printing  in  an  aqueous  medium.
           hydrated  HAc-Alg  and  HAc-Alg/CaP  scaffolds      The swelling  ratios of the printed  hydrogels
           (Table  2 and  Supplementary Figure 7-C).           were studied within 24  h of the printing  and
           Under  a  predefined  deformation  (ε  =  80%),  the   subsequent post-UV curing processes (Table  2
           rods  and  struts  of  both  HAc-Alg  and  HAc-Alg/  and Supplementary Figure 7-D). In all cases, the
           CaP hydrogels were crushed, and the porous          equilibrium swelling ratios were almost reached,
           scaffolds  subsequently  densified.  Both  scaffolds   indicating that the HAc-Alg/CaP nanocomposite
           did not collapse until the predefined deformation   hydrogels exhibited  reduced swelling  ratios  due
           point (ε = 80%) with significant densification. All   to  the  increased  chain  stiffness  and  crosslinking
           specimens  maintained  their  structural  integrity   density of the mineralized hydrogels [5,30] . During
           after unloading.  The incorporation of 30 wt%       the  printing  of multiphase hydrogel  composites
           CaP precipitates  in the hydrogels resulted in      with gradient compositions, one of the key
           a two-fold enhancement  of the compressive          concerns is the  mismatch of swelling ratios
           modulus and strength (Table 2). The precipitated    among various gradient hydrogel materials after
           CaP  minerals  improve  the  chain  stiffness  of   printing, as this can lead to significant structural
           the polymer networks due to (i) the strong          distortion and structural instability of the printed
           electrostatic interactions between the minerals and   constructs. Printing in a water-based slurry system
           carboxyl groups of the polysaccharide chains and    can minimize any such issues associated with the
           (ii) homogeneous distribution of the minerals as    swelling behavior of multiphase hydrogel systems.
           opposed to the case of simple mixing [5,28] . Notably,   3.4  In vitro biostability of the composite
           the  enhancements  of  compressive  stiffness  and   scaffolds
           strength in composite hydrogel scaffolds were not
           as striking as the enhancements in storage moduli   Enzymatic  degradation  of HAc often  results in
           of bulk gels and local stiffness of individual struts   low  biostability  of  the  HAc-based  scaffolds  and
           in the scaffolds. We speculated that this was due   requires physical or chemical crosslinking of the
           to the high porosity and structural instability     functionalized HAc. The in vitro biostability of the
           associated  with  irregular, inhomogeneous  pore    3D printed hydrogels was evaluated in the presence

                                       International Journal of Bioprinting (2020)–Volume 6, Issue 2        39
   38   39   40   41   42   43   44   45   46   47   48
