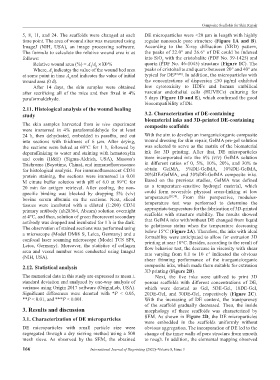

Composite Scaffolds for Skin Repair
           5, 8, 11, and 24. The scaffolds were changed at each   DE microparticles were <20 μm in length with highly
           time point. The area of wound sites was measured using   regular  nanoscale  pore  structure  (Figure  1A and B).
           ImageJ  (NIH,  USA),  an  image  processing  software.   According  to  the  X-ray  diffraction  (XRD)  pattern,
           The formula to calculate the relative wound area is as   the peaks of 22.0° and 26.6° of DE could be indexed
           follows:                      _                     into SiO  with the cristobalite (PDF No. 39-1425) and
                                                                      2
               Relative wound area (%) = A /A  ×    10 0    %  quartz (PDF No. 46-1045) structure (Figure 1C). The
                                          0
                                        t
               Where, A  indicates the value of the wound bed area   peaks of cristobalite and quartz between 20° and 40° are
                              _
                       t
           at some point in time A  and indicates the value of initial   typical for DE [27,28] . In addition, the microparticles with
                              0
           wound area (0 d).                                   the  concentrations  of  dispersion  ≤50  μg/ml  exhibited
               After  14  days,  the  skin  samples  were  obtained   low  cytotoxicity  to  HDFs  and  human  umbilical
           after  sacrificing  all  of  the  mice  and  then  fixed  in  4%   vascular  endothelial  cells  (HUVECs)  culturing  for
           paraformaldehyde.                                   5 days (Figure 1D and E), which confirmed the good
                                                               biocompatibility of DE.
           2.11. Histological analysis of the wound healing
           study                                               3.2. Characterization of DE-containing
                                                               biomaterial inks and 3D-printed DE-containing
           The  skin  samples  harvested  from  in vivo  experiment   composite scaffolds
           were  immersed  in  4%  paraformaldehyde  for  at  least
           24  h,  then  dehydrated,  embedded  in  paraffin,  and  cut   With the aim to develop an inorganic/organic composite
           into  sections  with  thickness  of  6  μm.  After  drying,   wound dressing for skin repair, GelMA pre-gel solution
           the  sections  were  baked  at  60°C  for  1  h,  followed  by   was selected to serve as the matrix of the biomaterial
           deparaffinizing to water and staining with hematoxylin   ink  for  3D  printing.  After  that,  DE  microparticles
           and  eosin  (H&E)  (Sigma-Aldrich,  USA),  Masson’s   were  incorporated  into  the  6%  (v/v)  GelMA  solution
           Trichrome (Beyotime, China), and immunofluorescence   in  different  ratios  of  0,  5%,  10%,  20%,  and  30%  to
           for histological analysis. For immunofluorescent CD31   obtain  GelMA,  5%DE-GelMA,  10%DE-GelMA,
           protein  staining,  the  sections  were  immersed  in  0.01   20%DE-GelMA,  and  30%DE-GelMA  composite  inks.
           M  citrate  buffer  solution  with  pH  of  6.0  at  99°C  for   Based  on  the  previous  studies,  GelMA  was  defined
           20  min  for  antigen  retrieval.  After  cooling,  the  non-  as  a  temperature-sensitive  hydrogel  material,  which
           specific  binding  was  blocked  by  dropping  5%  (v/v)   could  form  reversible  physical  cross-linking  at  low
                                                                         [29,30]
           bovine  serum  albumin  on  the  sections.  Next,  sliced   temperature  .  From  this  perspective,  modulus-
           tissues  were  incubated  with  a  diluted  (1:200)  CD31   temperature  test  was  performed  to  determine  the
           primary antibody (ab28364, Abcam) solution overnight   appropriate temperature for the fabrication of 3D-printed
           at 4°C, and then, solution of green fluorescent secondary   scaffolds  with  structure  stability.  The  results  showed
           antibody was dropped and incubated for 1 h in the dark.   that GelMA inks with/without DE changed from liquid
           The observation of stained sections was performed using   to  gelatinous  status  when  the  temperature  decreasing
           a microscope (Model DMi8 S, Leica, Germany) and a   below 15°C (Figure 2A). Therefore, the inks with ideal
                                                               formability were anticipated to allow for extrusion 3D
           confocal  laser  scanning  microscope  (Model TCS  SP8,   printing at near 10°C. Besides, according to the result of
           Leica,  Germany).  Moreover,  the  statistics  of  collagen   flow behavior test, the decrease in viscosity with shear
           area  and  vessel  number  were  conducted  using  ImageJ   rate  varying  from  0.1  to  10  s   indicated  the  obvious
                                                                                         -1
           (NIH, USA).                                         shear  thinning  performance  of  the  inorganic/organic
           2.12. Statistical analysis                          composite inks, which made them suitable for extrusion
                                                               3D printing (Figure 2B).
           The numerical data in this study are expressed as mean ±   Next,  the  five  inks  were  utilized  to  print  3D
           standard deviation and analyzed by one-way analysis of   porous  scaffolds  with  different  concentrations  of  DE,
           variance using Origin 2017 software (OriginLab, USA).   which  were  denoted  as  Gel,  5DE-Gel,  10DE-Gel,
           Significant  differences  were  denoted  with  *P  <  0.05,   20DE-Gel,  and  30DE-Gel,  respectively  (Figure  2C).
           **P < 0.01, and ***P < 0.001.                       With  the  increasing  of  DE  content,  the  transparency
                                                               of  the  scaffold  gradually  decreased.  Then,  the  inside
           3. Results and discussion                           morphology  of  these  scaffolds  was  characterized  by

           3.1. Characterization of DE microparticles          SEM. As shown in Figure 2D, the DE microparticles
                                                               were  embedded  in  the  scaffolds  uniformly  without
           DE  microparticles  with  small  particle  size  were   obvious aggregation. The incorporation of DE led to the
           segregated through a dry sieving method using a 500   change of the inner walls of pore structure from smooth
           mesh  sieve.  As  observed  by  the  SEM,  the  obtained   to rough. In addition, the elemental mapping observed
