International Journal of Bioprinting Review of 3D bioprinted organoids

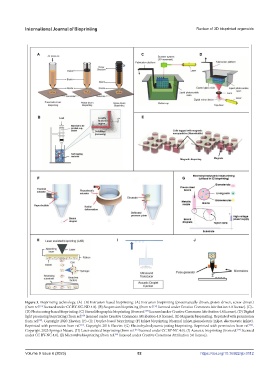

Figure 3. Bioprinting technology. (A)–(B) Extrusion-based bioprinting: (A) Extrusion bioprinting (pneumatically driven, piston-driven, screw-driven)
[59]
(from ref. [16] licensed under CC BY-NC-ND 4.0). (B) Suspension bioprinting (from ref. licensed under Creative Commons Attribution 4.0 license). (C)–
[69]
(D) Photocuring-based bioprinting: (C) Stereolithographic bioprinting (from ref. licensed under Creative Commons Attribution 4.0 license). (D) Digital
[69]
light processing bioprinting (from ref. licensed under Creative Commons Attribution 4.0 license). (E) Magnetic bioprinting. Reprinted with permission
[78]
from ref. . Copyright 2020 Elsevier. (F)–(J): Droplet-based bioprinting: (F) Inkjet bioprinting (thermal inkjet, piezoelectric inkjet, electrostatic inkjet).
[61]
Reprinted with permission from ref. . Copyright 2016 Elsevier. (G) Electrohydrodynamic jetting bioprinting. Reprinted with permission from ref. .
[64]
Copyright 2023 Springer Nature. (H) Laser-assisted bioprinting (from ref. [65] licensed under CC BY-NC 4.0). (I) Acoustic bioprinting (from ref. licensed
[79]
under CC BY-NC 4.0). (J) Microvalve bioprinting (from ref. licensed under Creative Commons Attribution 3.0 license).
[76]
Volume 9 Issue 6 (2023) 82 https://doi.org/10.36922/ijb.0112
