Materials Science in Additive Manufacturing Gyroid non-pneumatic tires through additive manufacturing

0.3 mm. Material properties were sourced from the 3DS 3. Results
Systems website for the Flex-BLK 20 resin, which has
a Young’s modulus of 1229 MPa and a Poisson’s ratio 3.1. Experimental testing and FEA validation
of 0.42. Figure 2 illustrates the boundary conditions Uniaxial compression tests with an applied displacement of
50
employed in the FEA. A small plate was designated as a 12 mm were conducted on three TPMS designs: one with
fixed flat surface in the simulation, while a displacement uniform thickness (Tire 1), another with sheet thickness
of 12 mm was applied to the hub in the downward ranging from 1.0 – 1.5 mm (Tire 2), and a third with sheet
direction, as illustrated in Figure 2. To achieve solution thickness ranging from 1.0 – 2.0 mm (Tire 3). Localized
50
convergence, a maximum of 1000 substeps was set, deformations were assessed at various displacement values
resulting in an incremental displacement of 0.012 mm (0 – 12 mm) for four different location sheet bands of
per substep for displacement of 12 mm. TPMS (L0 – L3) using DIC. Figures 3-5 illustrate the DIC

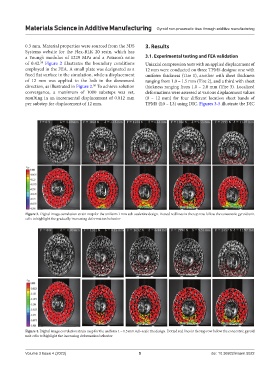

Figure 3. Digital image correlation strain map for the uniform 1 mm sub-scale tire design. Dotted red lines in the top row follow the concentric gyroid unit
cells to highlight the gradually increasing deformation behavior

Figure 4. Digital image correlation strain map for the uniform 1 – 1.5 mm sub-scale tire design. Dotted red lines in the top row follow the concentric gyroid
unit cells to highlight the increasing deformation behavior

Volume 3 Issue 4 (2023) 5 doi: 10.36922/msam.5022
