Morphological, mechanical and biological assessment of PCL/pristine graphene scaffolds for bone regeneration
(A) (B)
(C) (D)

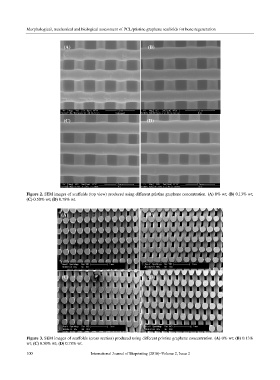

Figure 2. SEM images of scaffolds (top view) produced using different pristine graphene concentration. (A) 0% wt; (B) 0.13% wt;
(C) 0.50% wt; (D) 0.78% wt.
(A) (B)
(C) (D)
Figure 3. SEM images of scaffolds (cross section) produced using different pristine graphene concentration. (A) 0% wt; (B) 0.13%
wt; (C) 0.50% wt; (D) 0.78% wt.
100 International Journal of Bioprinting (2016)–Volume 2, Issue 2
