Page 447 - IJB-10-4
P. 447

International Journal of Bioprinting                                 Improving ductility of 3D-printed Zn–Mg

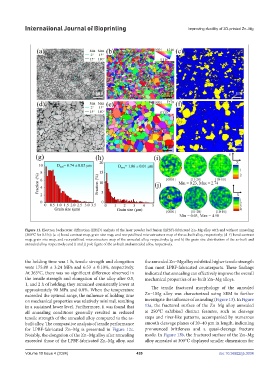

            Figure 11. Electron backscatter diffraction (EBSD) analysis of the laser powder bed fusion (LPBF)-fabricated Zn–Mg alloy with and without annealing
            (300℃ for 0.5 h): (a–c) bond contrast map, grain size map, and recrystallized microstructure map of the as-built alloy, respectively; (d–f) bond contrast
            map, grain size map, and recrystallized microstructure map of the annealed alloy, respectively; (g and h) the grain size distribution of the as-built and
            annealed alloy, respectively; and (i and j) pole figure of the as-built and annealed alloy, respectively.



            the holding time was 1 h, tensile strength and elongation   the annealed Zn–Mg alloy exhibited higher tensile strength
            were 175.88 ± 3.24 MPa and 6.53 ± 0.10%, respectively.   than most LPBF-fabricated counterparts. These findings
            At 365°C, there was no significant difference observed in   indicated that annealing can effectively improve the overall
            the tensile strength and elongation of the alloy after 0.5,   mechanical properties of as-built Zn–Mg alloys.
            1, and 2 h of holding; they remained consistently lower at
            approximately 90 MPa and 0.8%. When the temperature   The tensile fractured morphology of the annealed
            exceeded the optimal range, the influence of holding time   Zn–1Mg alloy was characterized using SEM to further
            on mechanical properties was relatively minimal, resulting   investigate the influence of annealing (Figure 13). In Figure
            in a sustained lower level. Furthermore, it was found that   13a, the fractured surface of the Zn–Mg alloy annealed
            all  annealing  conditions generally  resulted  in reduced   at  250℃  exhibited  distinct features,  such as  cleavage
            tensile strength of the annealed alloy compared to the as-  steps  and  river-like  patterns, accompanied  by  numerous
            built alloy. The comparative analysis of tensile performance   smooth cleavage planes of 20–40 μm in length, indicating
            for LPBF-fabricated Zn–Mg is presented in  Figure 12c.   pronounced  brittleness  and  a  quasi-cleavage  fracture
            Notably, the elongation of the Zn–Mg alloy after annealing   mode. In Figure 13b, the fractured surface of the Zn–Mg
            exceeded those of the LPBF-fabricated Zn–Mg alloy, and   alloy annealed at 300℃ displayed smaller dimensions for

            Volume 10 Issue 4 (2024)                       439                                doi: 10.36922/ijb.3034
   442   443   444   445   446   447   448   449   450   451   452
