Materials Science in Additive Manufacturing Gradient porous material design criteria
A B

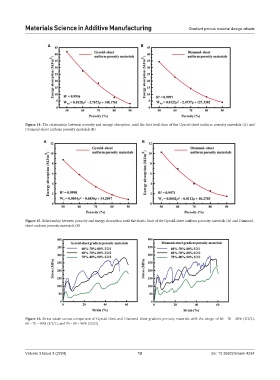

Figure 14. The relationship between porosity and energy absorption until the first load drop of the Gyroid-sheet uniform porosity materials (A) and
Diamond-sheet uniform porosity materials (B)
A B
Figure 15. Relationship between porosity and energy absorption until the elastic limit of the Gyroid-sheet uniform porosity materials (A) and Diamond-
sheet uniform porosity materials (B)
Figure 16. Stress-strain curves comparison of Gyroid-sheet and Diamond-sheet gradient porosity materials with the design of 60 – 70 – 80% (2/2/2),
60 – 70 – 80% (3/2/1), and 70 – 80 – 90% (2/2/2)
