International Journal of Bioprinting Horsetail-inspired lattice for bone use

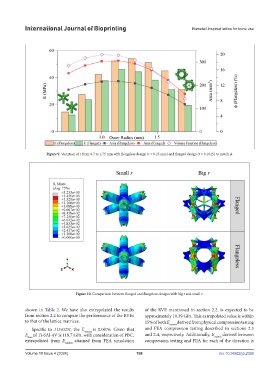

Figure 9. Variation of r from 0.7 to 1.75 mm with flangeless design (t = 0.25 mm) and flanged design (t = 0.1625) to match φ.

Figure 10. Comparison between flanged and flangeless designs with big r and small r.

shown in Table 2. We have also extrapolated the results of the RVE mentioned in section 2.2, is expected to be
from section 2.2 to compare the performance of the RVEs approximately 10.39 GPa. This extrapolated value is within
to that of the lattice matrices. 15% of both E matrix derived from physical compression testing

Specific to 115r025t, the E is 0.0876. Given that and FEA compression testing described in sections 2.3
relative
E base of Ti-6Al-4V is 118.7 GPa, with consideration of PBC, and 2.4, respectively. Additionally, E matrix derived between
extrapolated from E attained from FEA simulation compression testing and FEA for each of the direction is
relaltive
