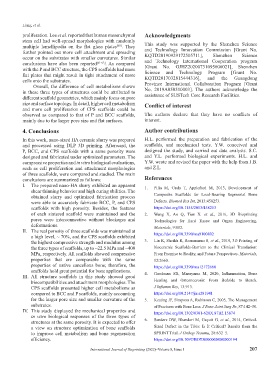

Page 221 - IJB-8-1

Liang, et al.
proliferation. Lee et al. reported that human mesenchymal Acknowledgments
stem cell had well-spread morphologies with randomly
multiple lamellipodia on the flat glass plates . They This study was supported by the Shenzhen Science
[60]
further pointed out more cell attachment and spreading and Technology Innovation Commission [Grant No.
occur on the substrates with smaller curvatures. Similar KQTD20190929172505711], Shenzhen Science
and Technology International Cooperation program
conclusions have also been reported [61-63] . As compared [Grant No. GJHZ20200731095606021], Shenzhen
with the P and BCC structure, the CPS scaffolds had more Science and Technology Program [Grant No.
flat plates that might result in tight attachment of more KQTD2017032815444316], and the Guangdong
cells onto the substrates.
Overall, the difference of cell metabolisms shown Province International Collaboration Program [Grant
in these three types of structures could be attributed to No. 2019A050510003]. The authors acknowledge the
different scaffold geometries, which mainly focus on pore assistance of SUSTech Core Research Facilities.
size and surface topology. In detail, higher cell metabolism Conflict of interest
and more cell proliferation of CPS scaffolds could be
observed as compared to that of P and BCC scaffolds, The authors declare that they have no conflicts of
mainly due to the larger pore size and flat surfaces. interest.

4. Conclusions Author contributions
In this work, nano-sized HA ceramic slurry was prepared H.L. performed the preparation and fabrication of the
and processed using DLP 3D printing. Afterward, the scaffolds, and mechanical tests. Y.W. conceived and
P, BCC, and CPS scaffolds with a same porosity were designed the study, and carried out data analysis. S.C.
designed and fabricated under optimized parameters. The and Y.L. performed biological experiments. H.L. and
compressive properties and in vitro biological evaluations, Y.W. wrote and revised the paper with the help from J.B.
such as cell proliferation and attachment morphologies and Z.L.
of three scaffolds, were compared and studied. The main
conclusions are summarized as follows: References
I. The prepared nano-HA slurry exhibited an apparent 1. Pilia M, Guda T, Appleford M, 2013, Development of
shear thinning behavior and high curing abilities. The Composite Scaffolds for Load-Bearing Segmental Bone
obtained slurry and optimized fabrication process
were able to accurately fabricate BCC, P, and CPS Defects. Biomed Res Int, 2013:458253.
scaffolds with high porosity. Besides, the features https://doi.org/10.1155/2013/458253
of each sintered scaffold were maintained and the 2. Wang X, Ao Q, Tian X, et al., 2016, 3D Bioprinting
pores were interconnective without blockages and Technologies for Hard Tissue and Organ Engineering.
deformations. Materials, 9:802.
II. The real porosity of three scaffolds was maintained at https://doi.org/10.3390/ma9100802
a high level, ~ 70%, and the CPS scaffolds exhibited
the highest compressive strength and modulus among 3. Lin K, Sheikh R, Romanazzo S, et al., 2019, 3D Printing of
the three types of scaffolds, up to ~22.5 MPa and ~400 bioceramic Scaffolds-Barriers to the Clinical Translation:
MPa, respectively. All scaffolds showed compressive From Promise to Reality, and Future Perspectives. Materials,
properties that are comparable with the same 12:2660.
properties of native cancellous bone; therefore, the https://doi.org/10.3390/ma12172660
scaffolds hold great potential for bone applications. 4. Goodman SB, Maruyama M, 2020, Inflammation, Bone
III. All structure scaffolds in this study showed good
biocompatibilities and attachment morphologies. The Healing and Osteonecrosis: From Bedside to Bench.
CPS scaffolds presented higher cell metabolisms as J Inflamm Res, 13:913.
compared to BCC and P scaffolds, mainly accounting https://doi.org/10.2147/jir.s281941
for the larger pore size and smaller curvature of the 5. Keating JF, Simpson A, Robinson C, 2005, The Management
substrates. of Fractures with Bone Loss. J Bone Joint Surg Br, 87:142–50.
IV. This study displayed the mechanical properties and https://doi.org/10.1302/0301-620X.87B2.15874
in vitro biological responses of the three types of 6. Sanders DW, Bhandari M, Guyatt G, et al., 2014, Critical-
structures at the same porosity. It is expected to offer
a view on structure optimization of bone scaffolds Sized Defect in the Tibia: Is It Critical? Results from the
to improve cell metabolism and bone regeneration SPRINT Trial. J Orthop Trauma, 28:632–5.
efficiency. https://doi.org/10.1097/BOT.0000000000000194

International Journal of Bioprinting (2022)–Volume 8, Issue 1 207
