International Journal of Bioprinting 3D-printed assembly anatomical patella fracture bone plate

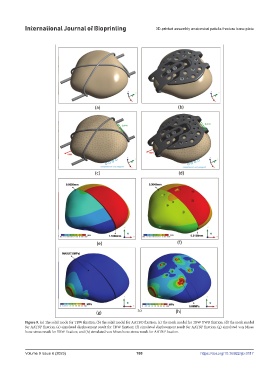

Figure 9. (a) The solid mode for TBW fixation; (b) the solid model for AATBO fixation; (c) the mesh model for TBW TWB fixation; (d) the mesh model
for AATBP fixation; (e) simulated displacement result for TBW fixation; (f) simulated displacement result for AATBP fixation; (g) simulated von Mises
bone stress result for TBW fixation; and (h) simulated von Mises bone stress result for AATBP fixation.
Volume 9 Issue 6 (2023) 180 https://doi.org/10.36922/ijb.0117
