International Journal of Bioprinting Nozzle geometry for enhanced cell viability

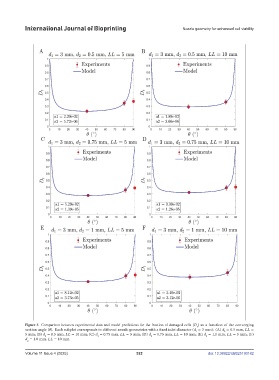

Figure 5. Comparison between experimental data and model predictions for the fraction of damaged cells (D ) as a function of the converging
t
section angle (θ). Each subplot corresponds to different nozzle geometries with a fixed inlet diameter (d = 3 mm): (A) d = 0.5 mm, LL =
1
2
5 mm; (B) d = 0.5 mm, LL = 10 mm; (C) d = 0.75 mm, LL = 5 mm; (D) d = 0.75 mm, LL = 10 mm; (E) d = 1.0 mm, LL = 5 mm; (F)
2
2
2
2
d = 1.0 mm, LL = 10 mm.
2
Volume 11 Issue 4 (2025) 322 doi: 10.36922/IJB025190182
