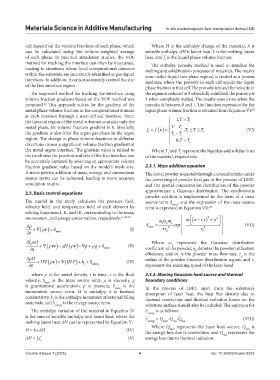

Page 63 - MSAM-4-1
P. 63

Materials Science in Additive Manufacturing                 In situ electromagnetic field manipulation during LMD



            cell depend on the volume fractions of each phase, which   Where H is the enthalpy change of the material, h is
            can  be calculated using  the volume-weighted  average   sensible enthalpy, ∆H is latent heat, L is the melting, latent
            of each phase. In practical simulation studies, the VOF   heat, and f  is the liquid phase volume fraction.
                                                                       l
            method for tracking the interface can often be inaccurate,   The enthalpy-porosity method is used to simulate the
            leading to situations where local computational domains   melting and solidification processes of materials. The mushy
            within the substrate are incorrectly identified as gas-liquid   zone (solid–liquid two-phase region) is treated as a porous
            interfaces. In addition, it cannot accurately control the size   medium, where the porosity in each cell equals the liquid
            of the free interface region.                      phase fraction in that cell. The porosity is 0, and the velocity in
              An improved method for tracking the interface using   the region is reduced to 0 when fully solidified; the porosity is
            volume fraction gradients based on the VOF method was   1 when completely melted. The mushy zone exists when the
            proposed.  This  approach solves  for the  gradient  of the   porosity is between 0 and 1. The function expression for the
                    22
            metal phase volume fraction in the computational domain   liquid phase volume fraction is obtained from Equation VI: 26
            at each iteration through a user-defined function. Since     
            the internal region of the metal substrate contains only the     1, TT>  l
                                                                         
            metal phase, its volume fraction gradient is 0. Similarly,   f = () =  TT−  s  , T ≤ T T     (VI)
                                                                   f x
                                                                                     ≤
            the gradient is also 0 for the argon gas phase in the argon   l   T − T s  s  l
                                                                           l
            region. The change in phase volume fractions in different      0, TT<
            directions causes a significant volume fraction gradient at          s
            the metal-argon interface. The gradient value is related to   Where T and T represent the liquidus and solidus lines
                                                                              s
                                                                        l
            the mesh size; the position and size of the free interface can   of the material, respectively.
            be accurately captured by selecting an appropriate volume
            fraction gradient value based on the model’s mesh size.   2.3.1. Mass addition equation
            A more precise addition of mass, energy, and momentum   The metal powder is ejected through a coaxial nozzle under
            source terms can be achieved, leading to more accurate   the conveying of powder feed gas in the process of LMD,
            simulation results.                                and the spatial concentration distribution of the powder
            2.3. Basic control equations                       approximates a Gaussian distribution. The synchronous
                                                               powder  addition  is  implemented  in  the  form  of  a  mass
            The model in the study calculates the pressure field,   source term S  , and the expression of the mass source
                                                                          mass
            velocity field, and temperature field of each element by   term is expressed in Equation VII: 27
            solving Equations I, II, and III, corresponding to the mass,
            momentum, and energy conservation, respectively: 11,23-25  ωη m     ω    ( xv t) + y 2  
                                                                                         2
                                                                                     −
                                                                              
                                                                                       s
                                                                              
                                                                                               
            ∂ρ +∇( ) = Sv                               (I)    S mass  =  1  r π p 2  s  exp −  r  2      (VII)
                   ρ
                                                                              
                                                                                               
             ∂t          mass                                           p             b       
            ∂( )                                                 Where  ω  represents the Gaussian distribution
              ρv
                                                                          1
                            µ
              ∂t  +∇(ρvv ) =∇( ) −∇ +ρv  p  ρg + S mom  (II)   coefficient of the powder, ɳ  denotes the powder utilization
                                                                                    p
                                                               efficiency, and m  is the powder mass flow rate, r  is the
                                                                                                        p
                                                                             s
            ∂ρH  +∇( ) =∇ ∇ ) +H  ρv  h  + S           (III)   radius of the powder Gaussian distribution region, and v
                                                                                                             s
             ∂t              (k T    s  energy                 represents the scanning speed of the laser head.
              where  ρ is the metal density,  t is time,  v is the fluid   2.3.2. Moving Gaussian heat source and thermal
            velocity,  S mass  is the mass source term,  μ is viscosity,  g   boundary conditions
            is gravitational acceleration,  p is pressure,  S mom  is the   In the process of LMD, apart from the substrate’s
            momentum source term,  H is enthalpy,  k is thermal   absorption of laser heat, the heat flux density due to
            conductivity, h  is the enthalpy increment of external filling   thermal convection and thermal radiation losses on the
                        s
            materials, and S energy  is the energy source term.  substrate surface should also be included. The equation for
              The enthalpy variation of the material in Equation IV   S energy  is as follows:
            is the sum of sensible enthalpy and latent heat, where the   S   = Q  -Q -Q                 (VIII)
            melting latent heat ∆H can be represented by Equation V:  energy  laser  con  rad
                                                                 Where  Q   represents the laser heat source,  Q  is
                                                                                                          con
                                                                         laser
            H = h+∆H                                   (IV)    the energy loss due to convection, and Q  represents the
            ∆H = Lf l                                  (V)     energy loss due to thermal radiation.  rad
            Volume 4 Issue 1 (2025)                         4                              doi: 10.36922/msam.8332
   58   59   60   61   62   63   64   65   66   67   68
