International Journal of Bioprinting Biomechanical analysis of mandibular implants

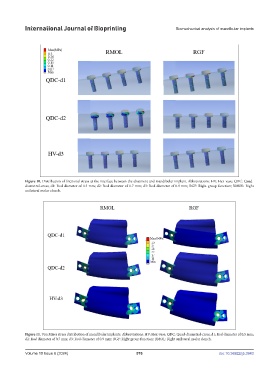

Figure 10. Distribution of frictional stress at the interface between the abutment and mandibular implant. Abbreviations: HV: Hex-vase; QDC: Quad-
diametral-cross; d1: Rod diameter of 0.5 mm; d2: Rod diameter of 0.7 mm; d3: Rod diameter of 0.9 mm; RGF: Right group function; RMOL: Right
unilateral molar clench.
Figure 11. Von Mises stress distribution of mandibular implants. Abbreviations: HV: Hex-vase; QDC: Quad-diametral-cross; d1: Rod diameter of 0.5 mm;
d2: Rod diameter of 0.7 mm; d3: Rod diameter of 0.9 mm; RGF: Right group function; RMOL: Right unilateral molar clench.
Volume 10 Issue 6 (2024) 576 doi: 10.36922/ijb.3943
